Y5-47 series centrifugal boiler blower is designed
for the industrial boiler of 1-20T/H which is fit for various burning
medium and equipped with smoke and dust catching device,which may
be selected by those with certain absorption condition and applicable
performance.No more than 250℃ of the highest temperature.Add the
dust catching device of no less than 85% dust catching efficiency
in front of the blower,so as to reduce the smoke content entered
the blower,and increase the blower's longevity.
The blower's performance is indicated with the specifications of
wind volume,full pressure,rotating speed of the principal axis,axis
power,efficiency,etc.Among the performance shown in the performance
chart,NO.4-6,the performance of blower is calculated according to
the air medium that:air temperature t=250℃,atmospheric pressure
P0=101300Pa,air density ρ=0.672kg/m3,above NO.8,is calculated according
to that:air temperature t=200℃,atmospheric pressure P0=101325Pa,smoke
density ρ=0.745kg/m3.
Two transmission methods are used for this series of blowers:direct
joint transmission(D type)and jib-headed strap transmission(C type)
This model of blower is single inhalation,9 types:NO.4、5、6、8、9、10、11、12、12.4,each
may be made in the model of left revolving or right revolving.
For the convenience of customer's installation and debug,the unitary
bracket and shock absorption bracket.
|

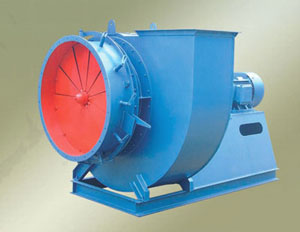

Y5-47 Centrifugal Boiler Blower
