Model YX9-35 5C、6.3C、8C\D are developed to apply
to the boiler of 1t、2t or 4t,which may be selected by those with
certain absorption condition and applic able performance.No more
than 250℃ of the highest temper ature.Add the dust catching device
of no less than 85% dust catching efficiency in front of the blower,so
as to reduce the smoke content entered the blower,and increase the
blower's longevity.
The blower's performance is indicated with the specifications of
wind volume,full pressure,rotating speed of the principal axis,axis
power,efficiency,etc.Among the performance shown in the performance
chart,the performance of blower is calculated according to the air
medium that:air temperature t=200℃,atmospheric pressure P0=101325Pa,air
density ρ=0.745kg/m3
This model of blower is single inhalation,3 types:NO.5、6.3、8
Each may be made in the model of left revolving or right revolving.For
the convenience of customer's installation and debug,the unitary
bracket and shock absorption bracket.
|

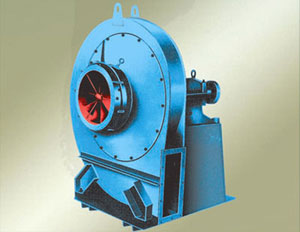

YX9-35 Centrifugal Boiler Blowe
